QualGear QG-DM-01-016 13-27 Inch 3-Way Articulating Single Monitor Desk Mount, Silver

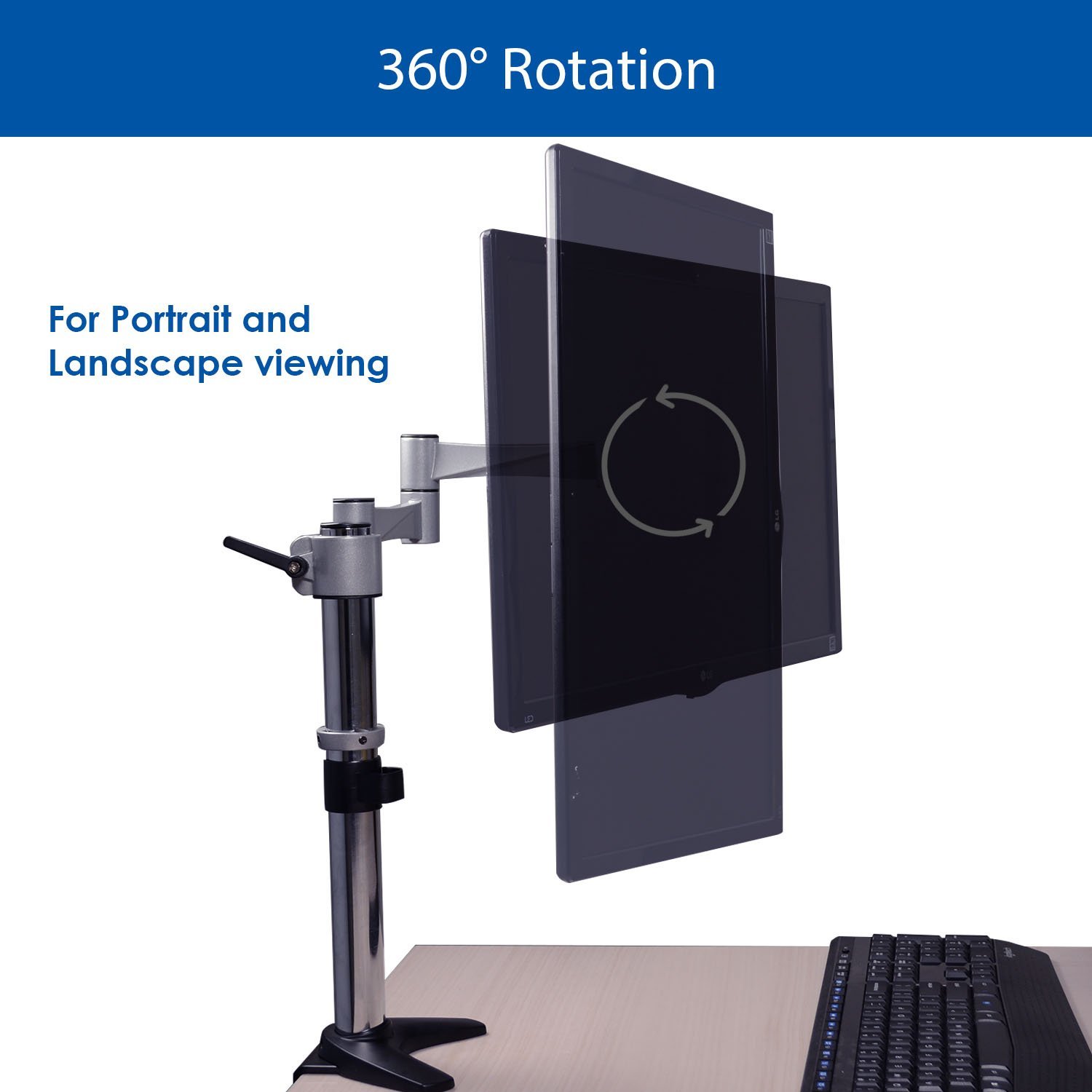

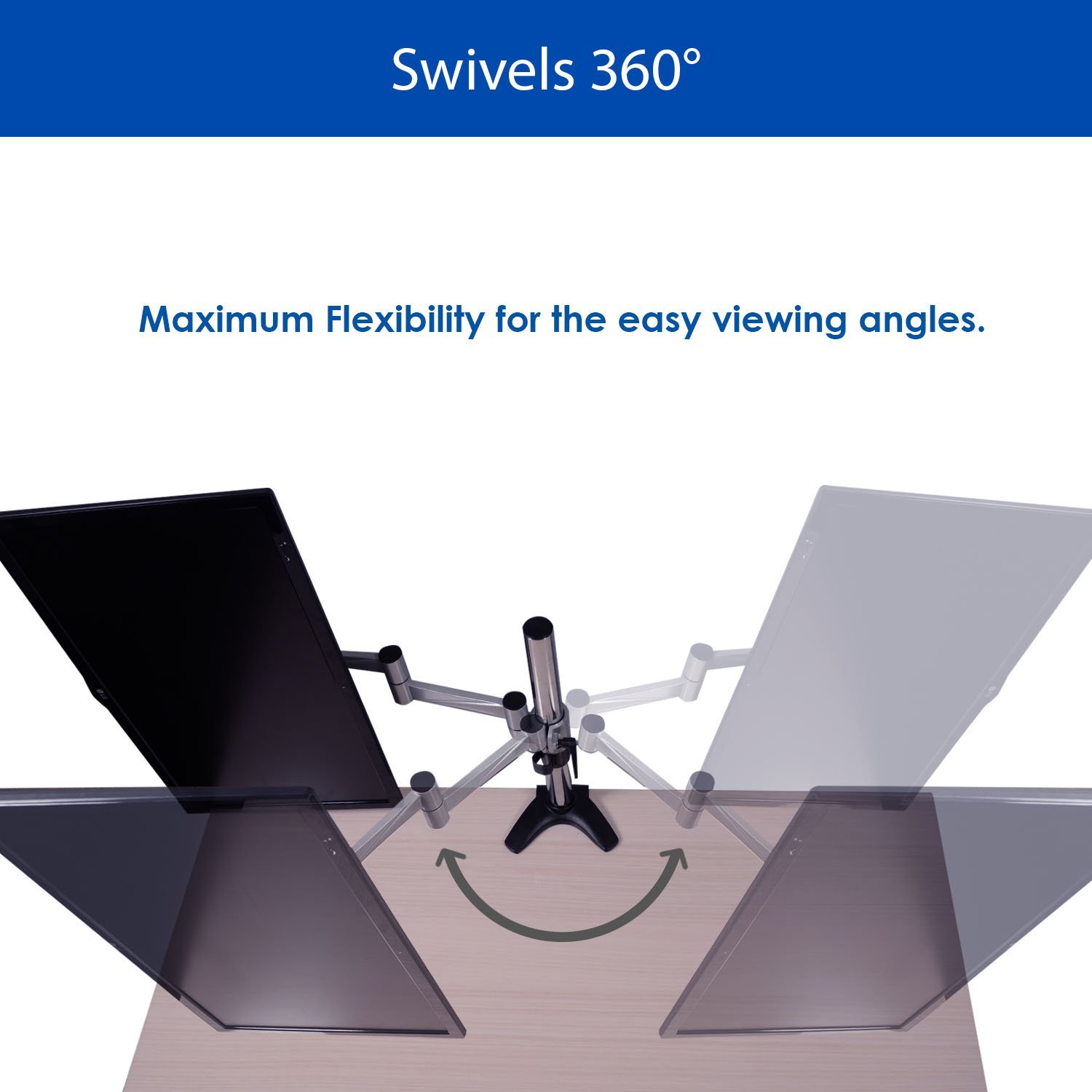

The QualGear QG-DM-01-016 is a family of elegant aluminum LCD VESA desk mounts for 13''-27'' monitors. The weight capability is 8kgs/17.6Ibs for each arm. Full motion structure allows maximum flexibility - extends, tilt and swivel your monitor up to 90 Degree left and right for easy viewing.

Its ball-joint structure allows smooth, effortless tilt motion for any direction, making it easy to reduce glare and find the perfect viewing angle. You can also adjust the monitor vertically to a desired position. Along with all of this, it has a elegant and sleek design. Integrated cable clips are included for organizing cables.

Product Features

  • Slide-in VESA plate provides easy access for attachment and detachment
  • Integrated ball joint enables 15 Degree tilt in any direction
  • Flat die casting aluminum arms present elegant look
  • Cable clips keep cables organized
  • Telescopic height adjustment without tools

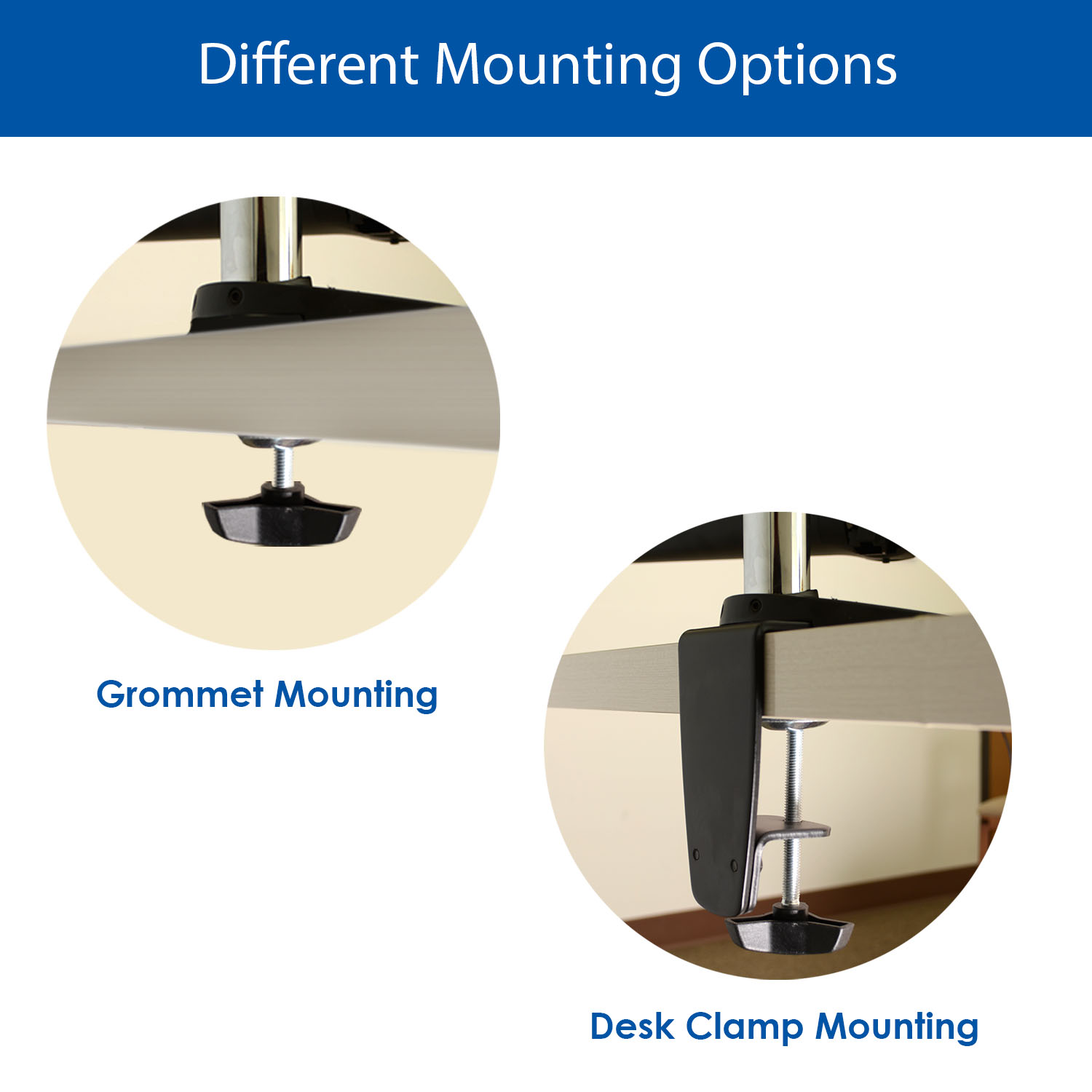

  • Support both grommet and desk clamp mounting available
  • Pre-sorted hardware pack for easy installation

360 Degree View

Product Specifications

  • Compatible Monitor Size (inches) :
    13" to 27"
  • Maximum Weight Capacity (lbs) :
    17.6

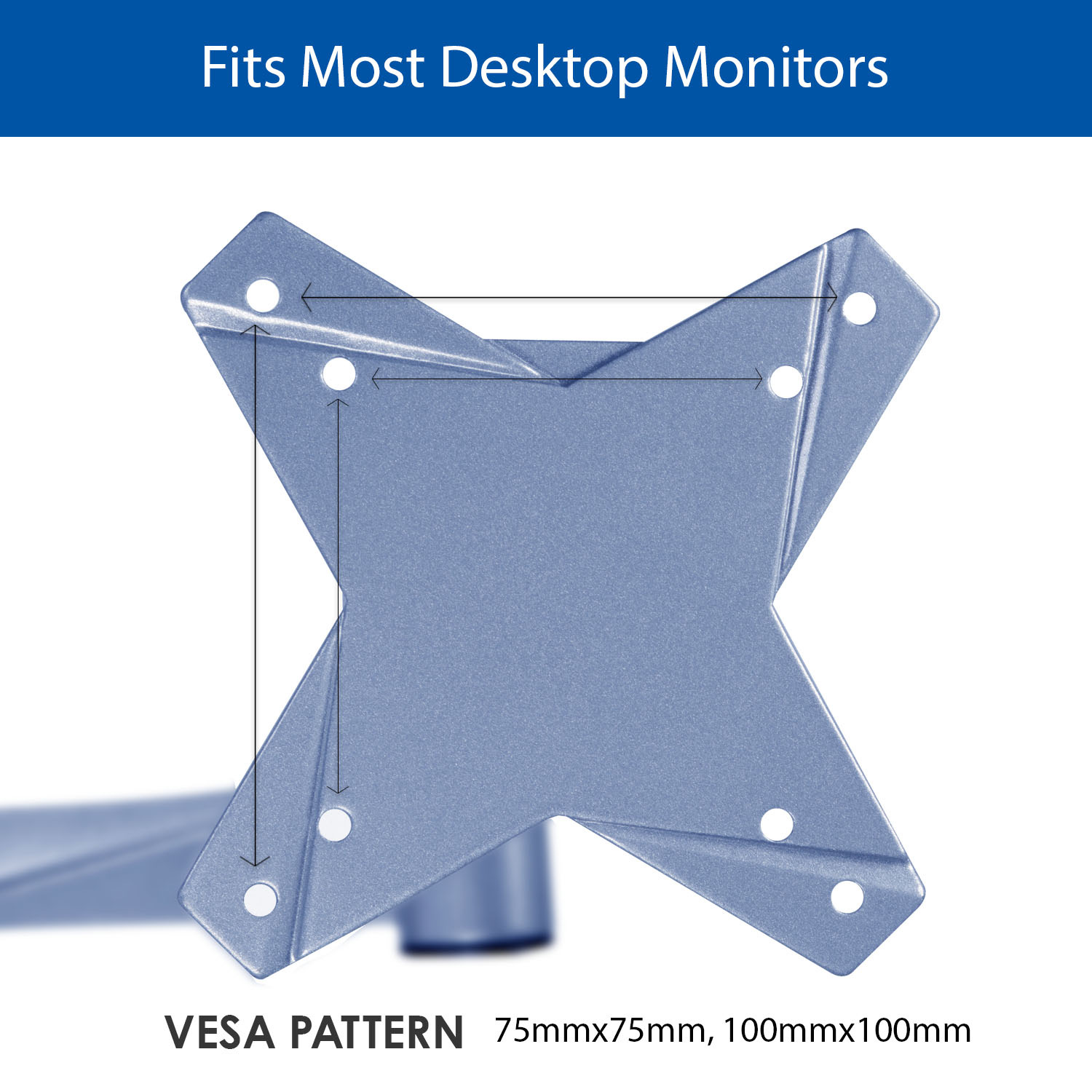

  • Supported Mounting Hole Patterns (VESA) :
    75 x 75, 100 x 100

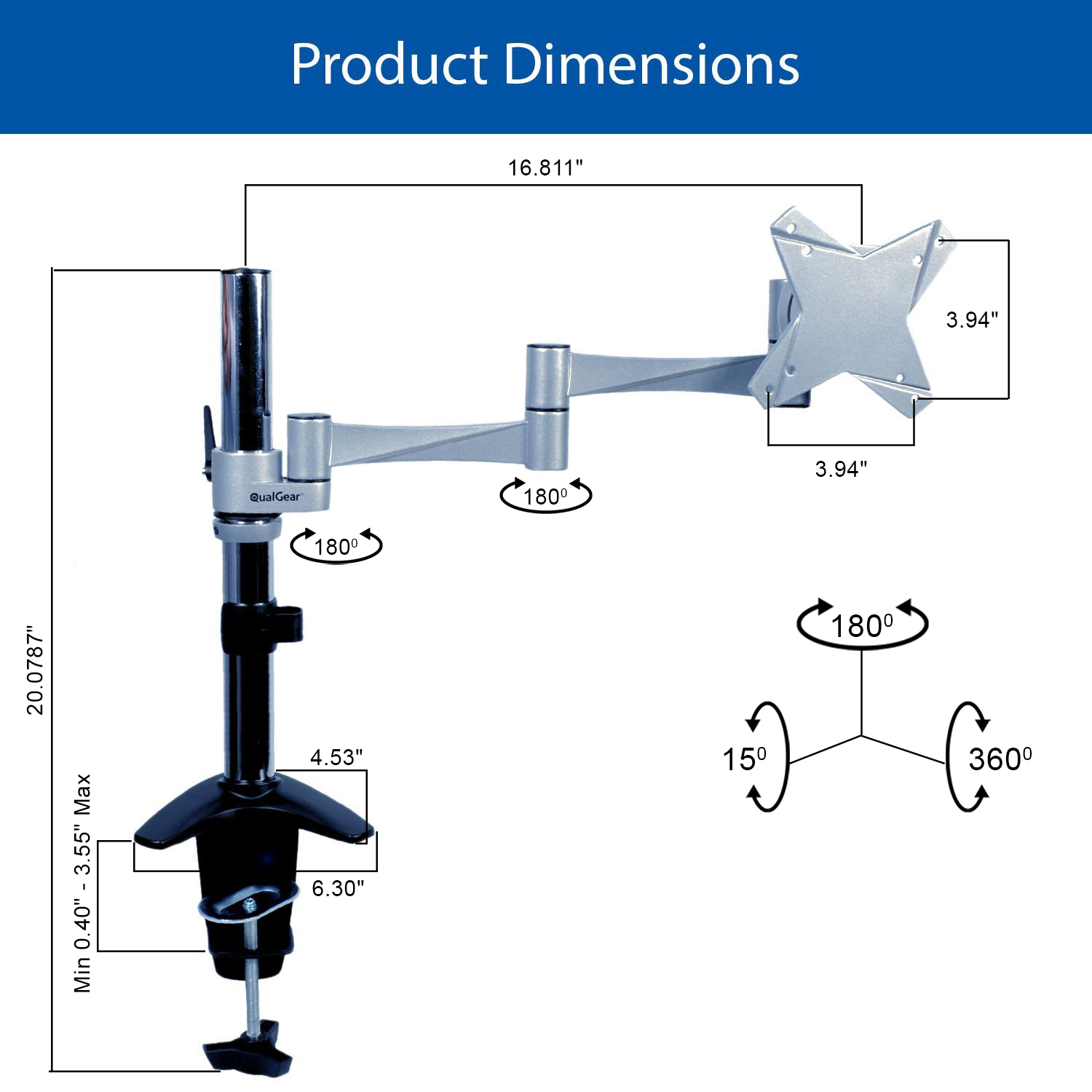

  • Product Dimensions (inches):
    16 X 9.8 X 5
  • Product Weight (lbs):
    8.05
  • Shipping Dimensions (inches):
    16 X 9.8 X 5
  • Shipping Weight (lbs):
    8.1
  • Shipping Container:
    Box
  • Carton Dimensions (inches):
    20.25 X 16.5 X 10.5
  • Carton Weight (lbs):
    33.9
  • No. of Units in a Carton (Case Pack Quantity):
    4
  • Volume of Carton (ft3):
    2.0302
  • Volume of Carton (m3):
    0.057488767
  • Cartons per Pallet (per 80 ft3 or Max Weight 1500lbs):
    39
  • Pallet Quantity (Number of Units per Pallet):
    156
  • Customs Description (USA) :
    Desk Mount Brackets
  • Customs HTS Code (USA) :
    8302.50.0000
