Projector-accessories- QualGear QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe
Home» Pro-AV Projector Mounts » Pipe Connectors » QualGear QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory

QualGear QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory

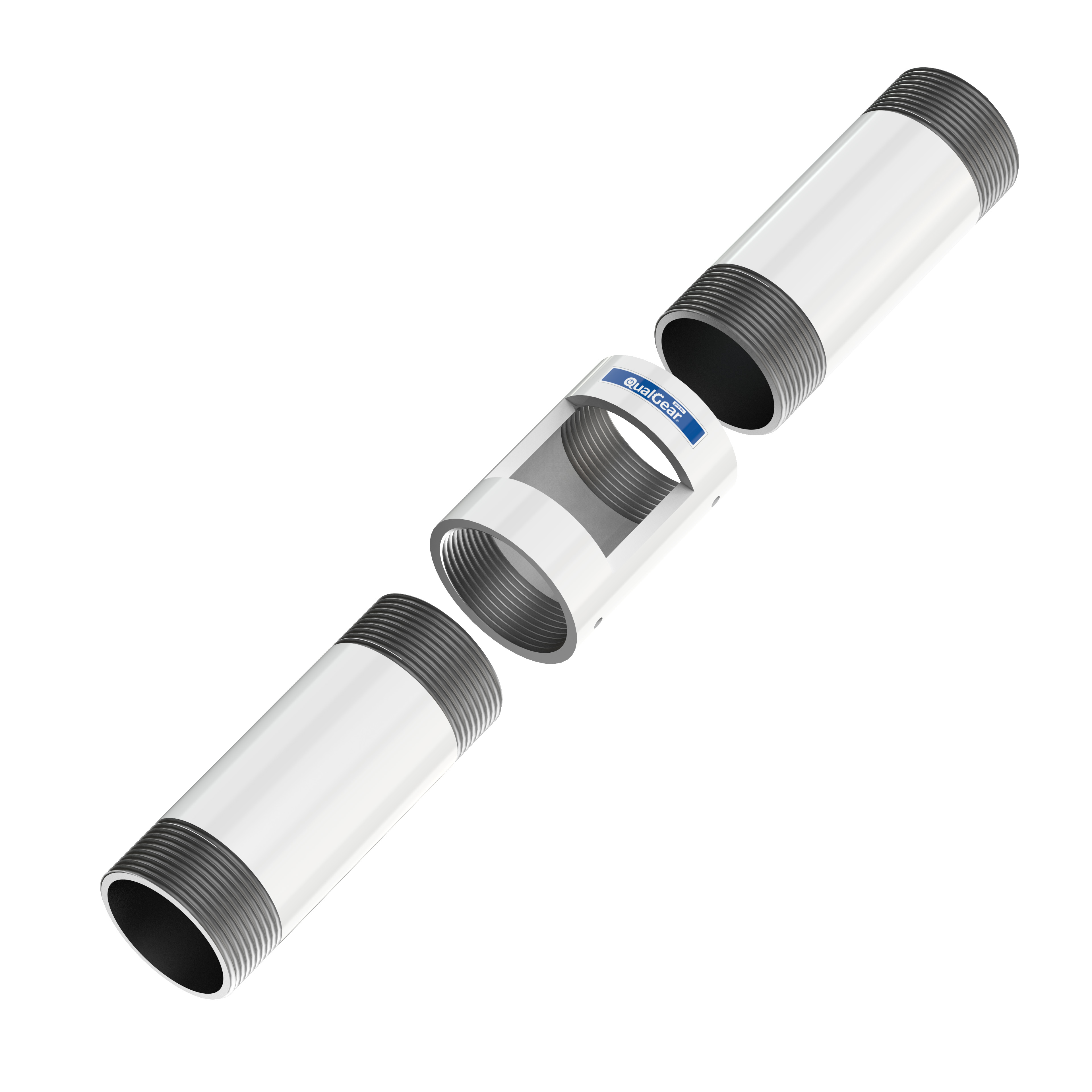

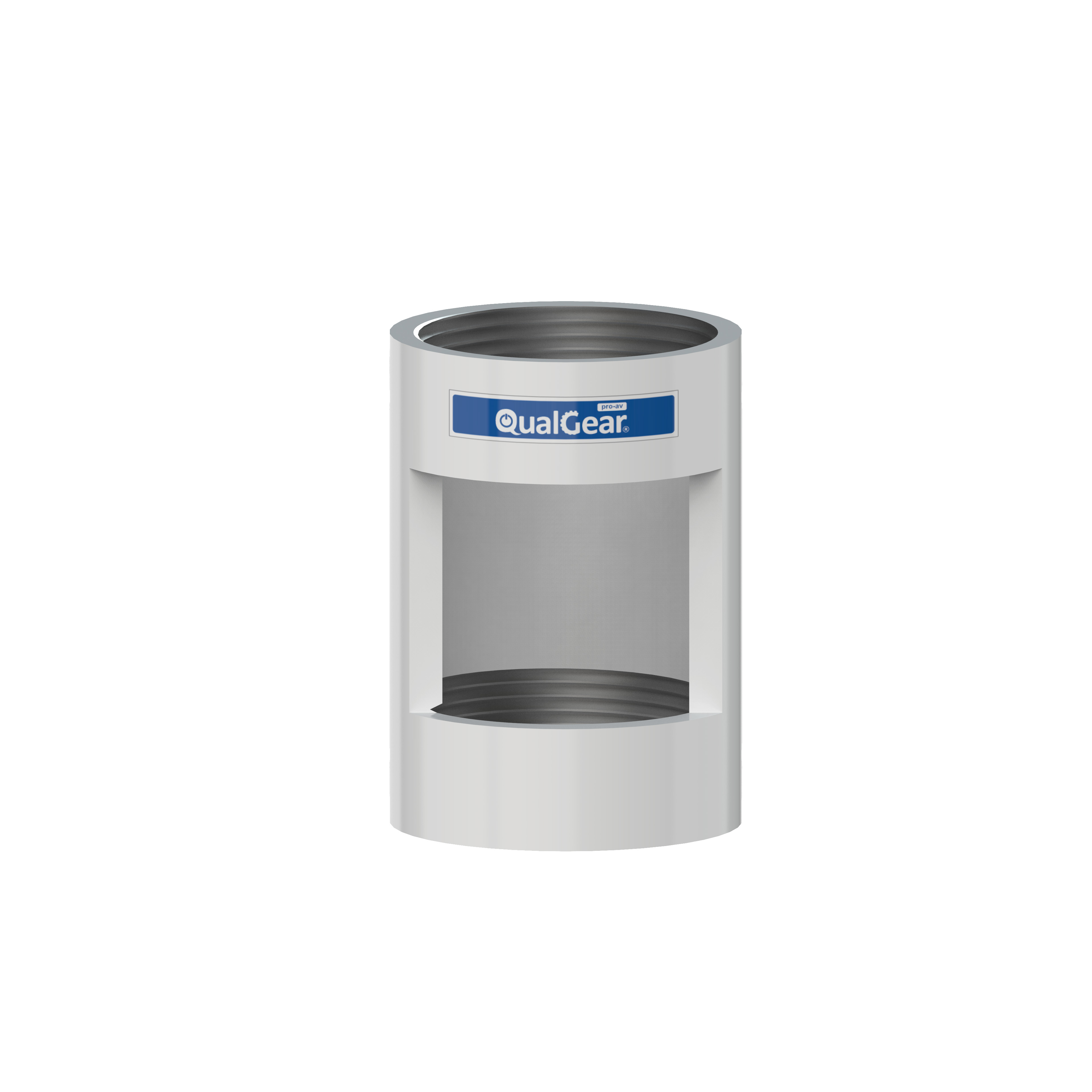

QualGear� pro-AV Pipe Connector with opening w/1.5 NPT, White, Model #QG-PRO-PM-PCO-W joins two or more columns to extend drop length. The connector's opening allows for cord management for a neat look.

Product Features

  • Join columns for extended drop length
  • Compatible with 1.5" NPT interface

QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory

Supported Ceilings

QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory

Flat Ceilings


The following models support flat ceilings and installing to wood beams, concrete slabs, and metal beams. They are available in two colors as follows. White: QG-KIT-CA-3IN-W. Black: QG-KIT-CA-3IN-B

Cathedral / Vaulted / Sloped Ceilings


The following models support angled ceilings and installing to wood beams, concrete slab, and metal beams. They are available in two colors as follows. White: QG-KIT-VA-3IN-W, Black: QG-KIT-VA-3IN-B.

Drop / Suspended Ceilings


The following models support suspended ceilings and installing via steel wire. They are available in White color and two ceiling tile configurations as follows. 2' x 2' Tile: QG-KIT-S2-3IN-W. 6" x 2' Tile: QG-KIT-S-3IN-W.

Truss


The following model supports installing to truss beams. It is available in Black color as follows. Black: QG-KIT-TA-3IN-B.

Six Axis Adjustment

QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory QualGear® QG-PRO-PM-PCO-W Pro-AV 1.5 Inch Npt Threaded Pipe Connector with Opening Projector Accessory

tv4
tv4

360 Degree View

Product Specifications

  • Finish :
    Scratch resistant epoxy powder coat
  • 1.5 NPT thread compatible :
    Yes
  • Maximum Weight Capacity (lbs) :
    300lb (136kg)
  • Construction :
    Aluminum
  • Product Dimensions (inches):
    3.45 X 2.5 X 2.5
  • Product Weight (lbs):
    0.35
  • Shipping Dimensions (inches):
    4 X 3.5 X 3
  • Shipping Weight (lbs):
    0.35
  • Shipping Container:
    Small Poly Bag
  • Carton Dimensions (inches):
    15.5 X 13 X 10.5
  • Carton Weight (lbs):
    31.3
  • No. of Units in a Carton (Case Pack Quantity):
    90
  • Volume of Carton (ft3):
    1.2243
  • Volume of Carton (m3):
    0.034668258
  • Cartons per Pallet (per 80 ft3 or Max Weight 1500lbs):
    47
  • Pallet Quantity (Number of Units per Pallet):
    4230
  • Customs Description (USA) :
    Projector Mount Brackets
  • Customs HTS Code (USA) :
    8302.50.0000

Similar Products

Installation Manual

Note: We constantly revise installation manuals based on customer feedback. So please be advised that actual product manual that comes with your product purchase may vary from the product manual on this website. We request you to use the manual that comes with your product purchase for installation purposes. If you encounter any issues during the installation, please contact our customer support. support@qualgear.com
