QualGear low profile universal projector ceiling mount white.

QualGear Low Profile Universal Projector Ceiling Mount, White, PRB-717-WHT

SKU: PRB-717-WHT

$62.95
$62.95

Most in-stock orders placed by 2:00 pm CT on business days are processed the same day.

30-day returns — send it back within 30 days of the date of purchase.
1-year limited manufacturer's warranty, parts only
Installation manual PDF Will it fit my projector? Check before you buy
QualGear Low Profile Universal Projector Ceiling Mount, White, PRB-717-WHT
$62.95
$62.95

Will it fit?

Check the fit before you buy.

  1. Find your equipment's numbers

    For a TV or monitor, that's its VESA mounting-hole pattern and weight without the stand. For a projector, that's its weight and mounting-hole spacing. Both are published in the manufacturer's manual or spec page for the exact model.

  2. Compare against this mount's Key Specifications

    Check this mount's Key Specifications for the supported VESA patterns and weight capacity (or hole spacing, for projector mounts). Your equipment fits when every number is within the published range — screen size alone is not enough.

    View key specifications Open the full fit checker

Always confirm your equipment's weight and mounting pattern in its manual before mounting — screen size alone does not determine fit.

Key Specifications

30 lb / 13.6 kg 0-60 degrees 360 degrees +/-30 degrees
Full technical specifications
Performance / Capacity
Max projector weight30 lb / 13.6 kg

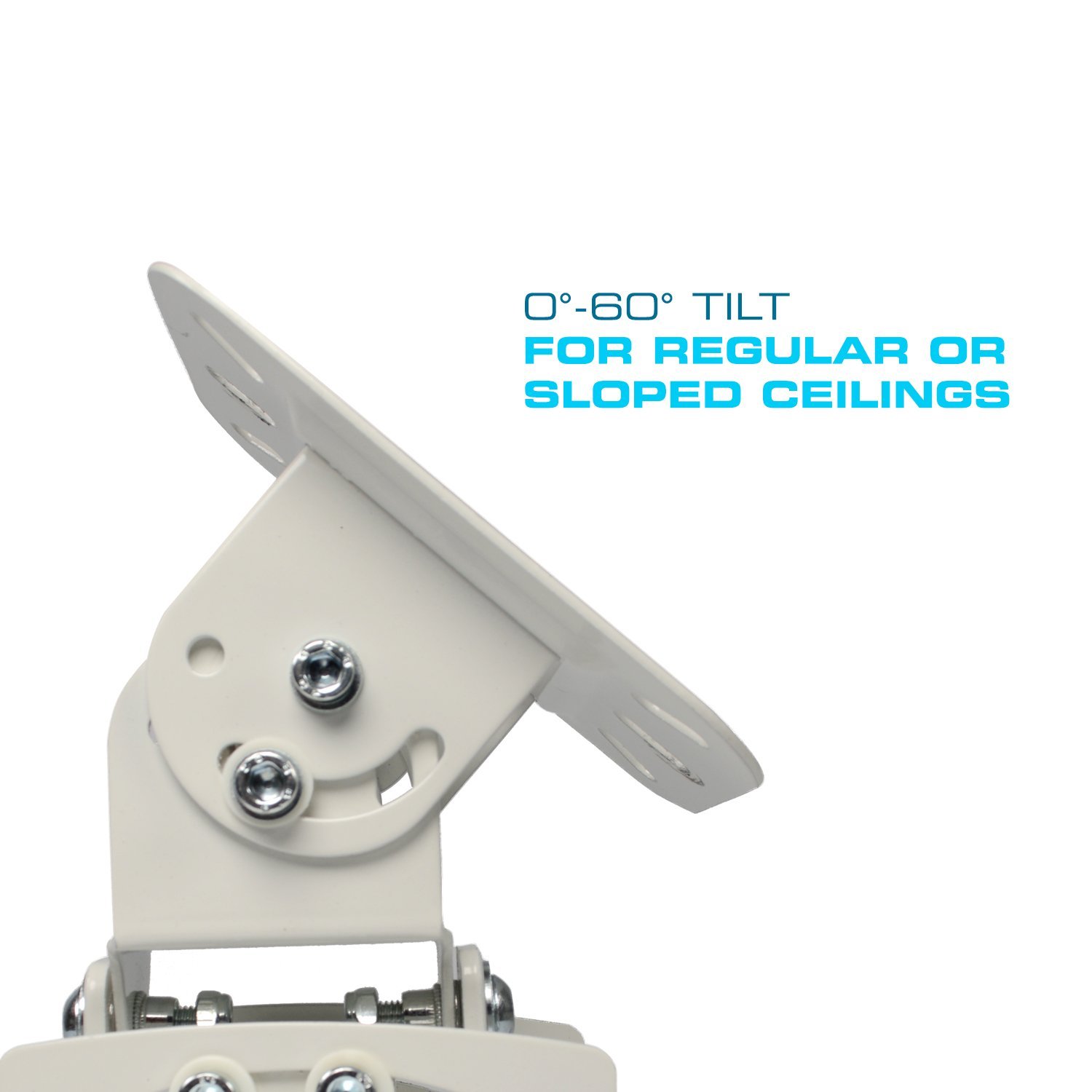

Tilt0-60 degrees
Swivel360 degrees
Pitch+/-30 degrees
Roll+/-20 degrees
Horizontal shift1 in / 2.5 cm
Dimensions & Weight
Profile (ceiling distance)6 in / 15.2 cm
Compatibility / Requirements

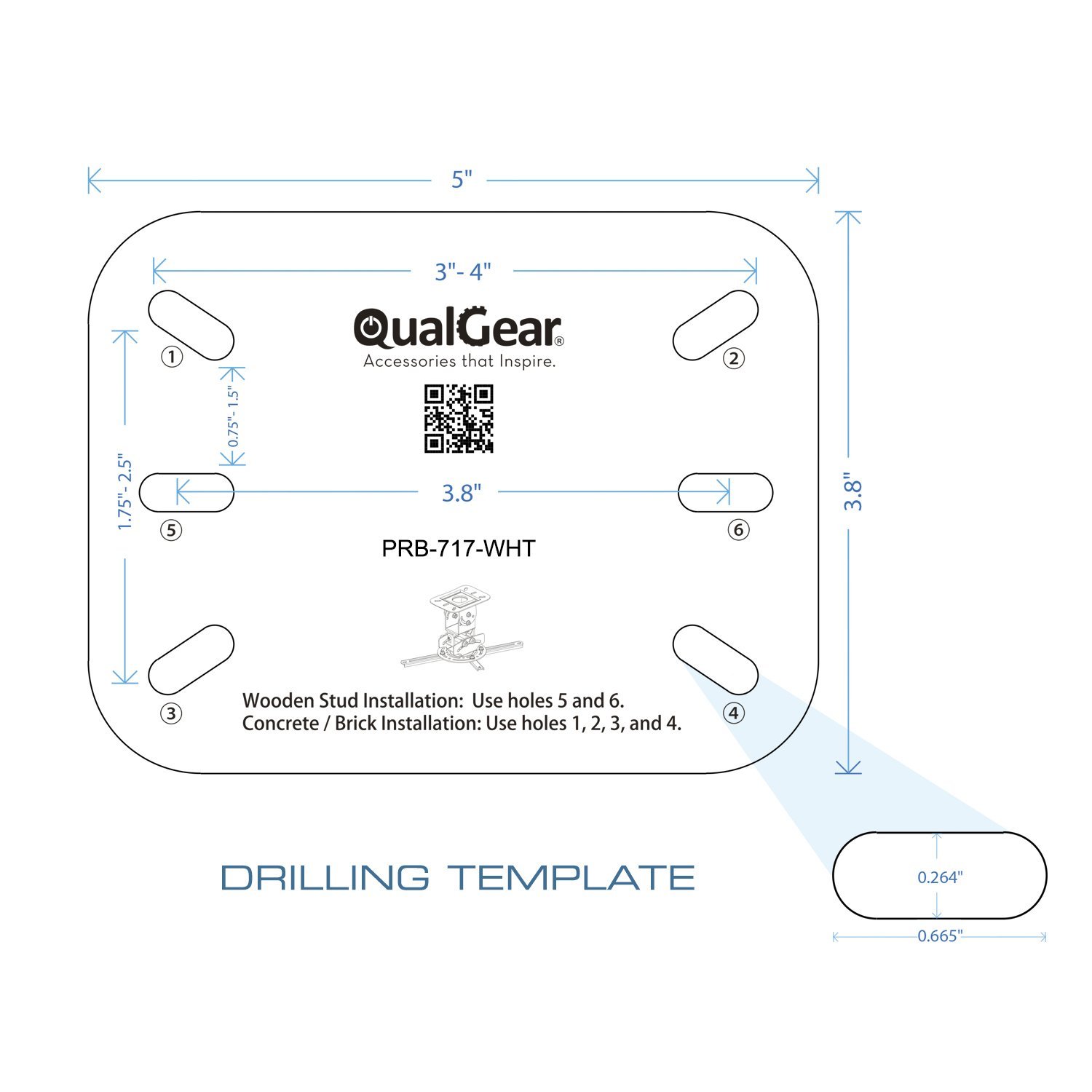

Mounting hole range6.6-16 in / 16.8-40.6 cm
Projector typesMost DLP and LCD projectors
Ceilings supportedWood studs or beams, solid concrete, or brick
Materials & Finish
MaterialCold-rolled steel
ColorWhite
Care / Installation
Projector releaseSnap-on / snap-off quick release
Warranty & Support
Warranty1-year limited manufacturer's warranty, parts only

Snap-on quick release holds 30 lb / 13.6 kg at 6 in / 15.2 cm from the ceiling.

Keep the projector tight to a white ceiling and out of the room's sightline. The QualGear PRB-717-WHT low profile universal projector ceiling mount holds projectors up to 30 lb / 13.6 kg just 6 in / 15.2 cm from the ceiling and fits units with mounting holes spaced 6.6-16 in / 16.8-40.6 cm apart.

Aim the image with 0-60 degree tilt and 360 degree swivel, level it with +/-30 degree pitch and +/-20 degree roll, and finish alignment with 1 in / 2.5 cm of horizontal shift. The snap-on, snap-off design releases the projector from the mount for quick access.

Cold-rolled steel construction in white sits quietly against a white ceiling. Pairs with a QualGear HDMI cable and VT2-B-50-P reusable cable ties for a clean ceiling run; when the install calls for a telescopic column, step up to the QualGear Universal Telescopic Projector Ceiling Mount, White (QG-PM-002-WHT). Backed by a 1-year limited manufacturer's warranty, parts only, with a 30-day RMA and US-based phone support at +1-972-423-5015.

Low profile keeps the ceiling clean

Holds the projector just 6 in / 15.2 cm from the ceiling, so the install stays tight and unobtrusive.

Fits most projectors up to 30 lb

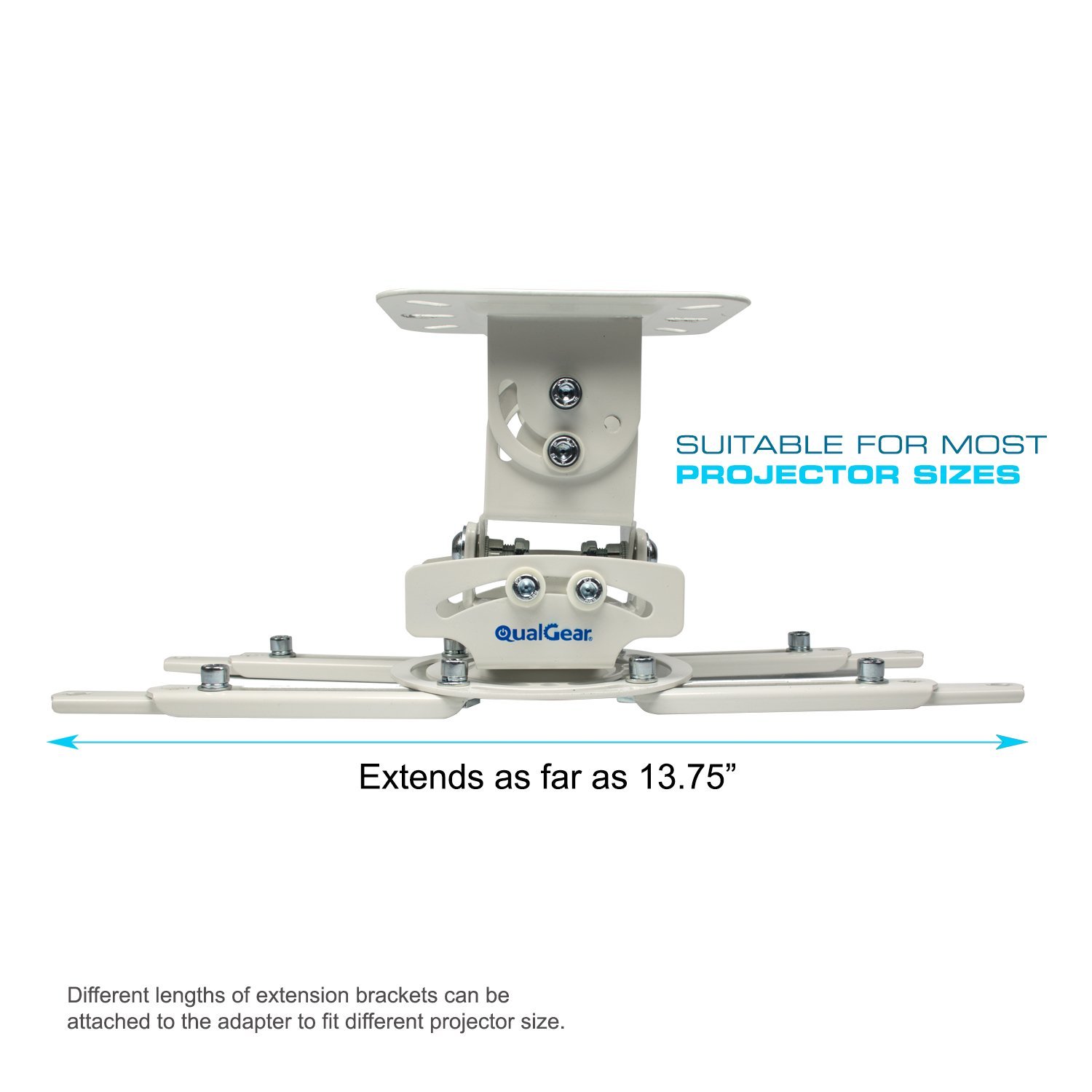

Universal design fits most DLP and LCD projectors up to 30 lb / 13.6 kg with mounting holes 6.6-16 in / 16.8-40.6 cm apart.

Aims the image on four axes

Tilt 0-60 degrees, swivel 360 degrees, pitch +/-30 degrees, and roll +/-20 degrees line the image up with the screen.

Horizontal shift for final alignment

1 in / 2.5 cm of horizontal shift fine-tunes lens position for final image alignment on the bracket.

Quick release for easy access

Snap-on, snap-off design releases the projector from the mount whenever you need quick access.

Cold-rolled steel in white

Cold-rolled steel construction carries the load, and the white finish blends into a white ceiling.

Documentation

Installation manual PDF
