QualGear QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5

This two-piece projector mount features easy installation. It has a total of 12 adjustment points (6 for pitch and 6 for roll) that allows the projector to stay in place and not slip after the installation.

Product Features

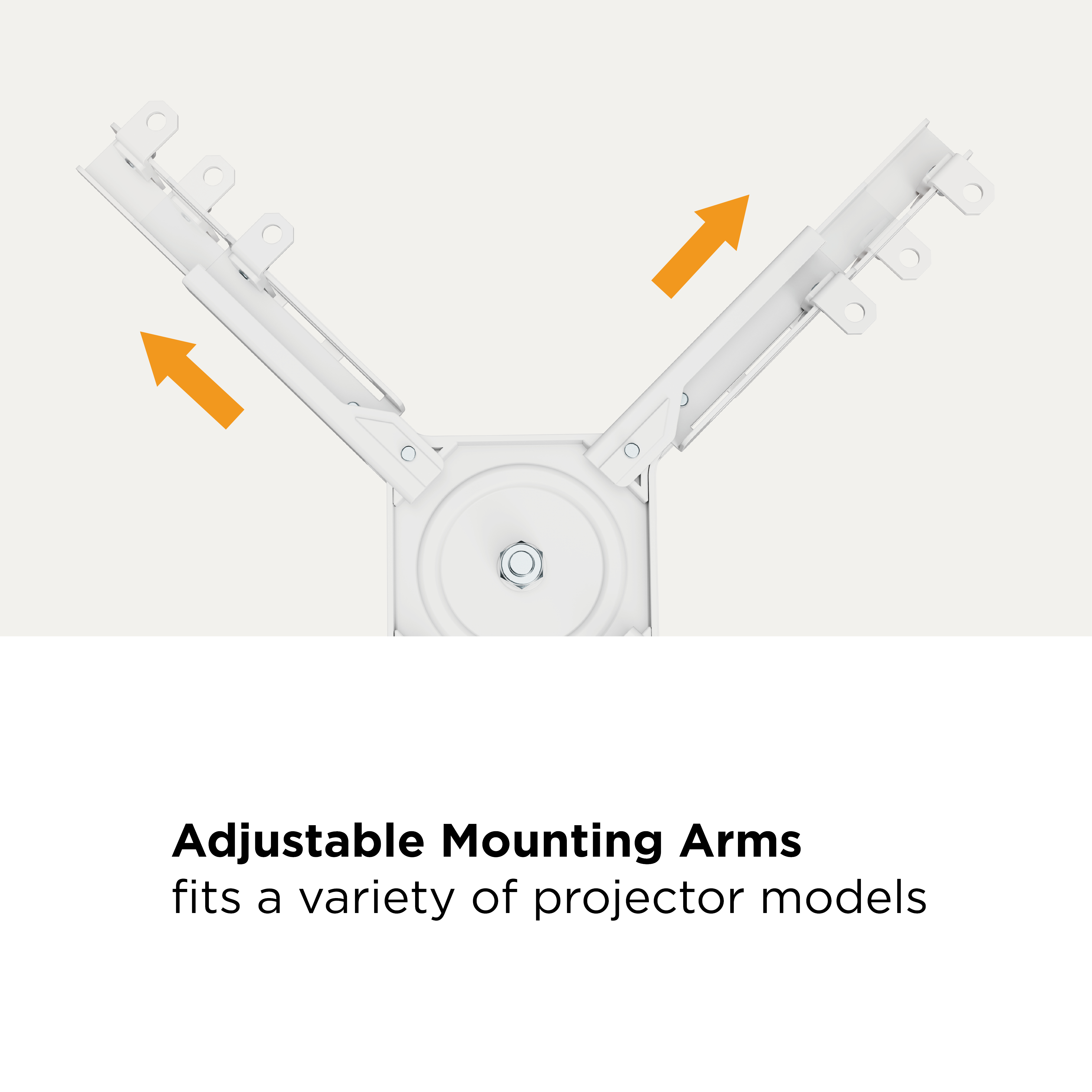

  • Fully adjustable roll, pitch and yaw
  • 12 total adjustment points (6 for pitch and 6 for roll)
  • Quick release feature
  • Low-profile that holds the projector close to ceiling
  • Pre-assembled mounting interface for quick installation
  • Pre-sorted hardware pack is included

QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5

Supported Ceilings

QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5 QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5 QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5 QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5

Flat Ceilings


The following models support flat ceilings and installing to wood beams, concrete slabs, and metal beams. They are available in two colors as follows. White: QG-KIT-CA-3IN-W. Black: QG-KIT-CA-3IN-B

Cathedral / Vaulted / Sloped Ceilings


The following models support angled ceilings and installing to wood beams, concrete slab, and metal beams. They are available in two colors as follows. White: QG-KIT-VA-3IN-W, Black: QG-KIT-VA-3IN-B.

Drop / Suspended Ceilings


The following models support suspended ceilings and installing via steel wire. They are available in White color and two ceiling tile configurations as follows. 2' x 2' Tile: QG-KIT-S2-3IN-W. 6" x 2' Tile: QG-KIT-S-3IN-W.

Truss


The following model supports installing to truss beams. It is available in Black color as follows. Black: QG-KIT-TA-3IN-B.

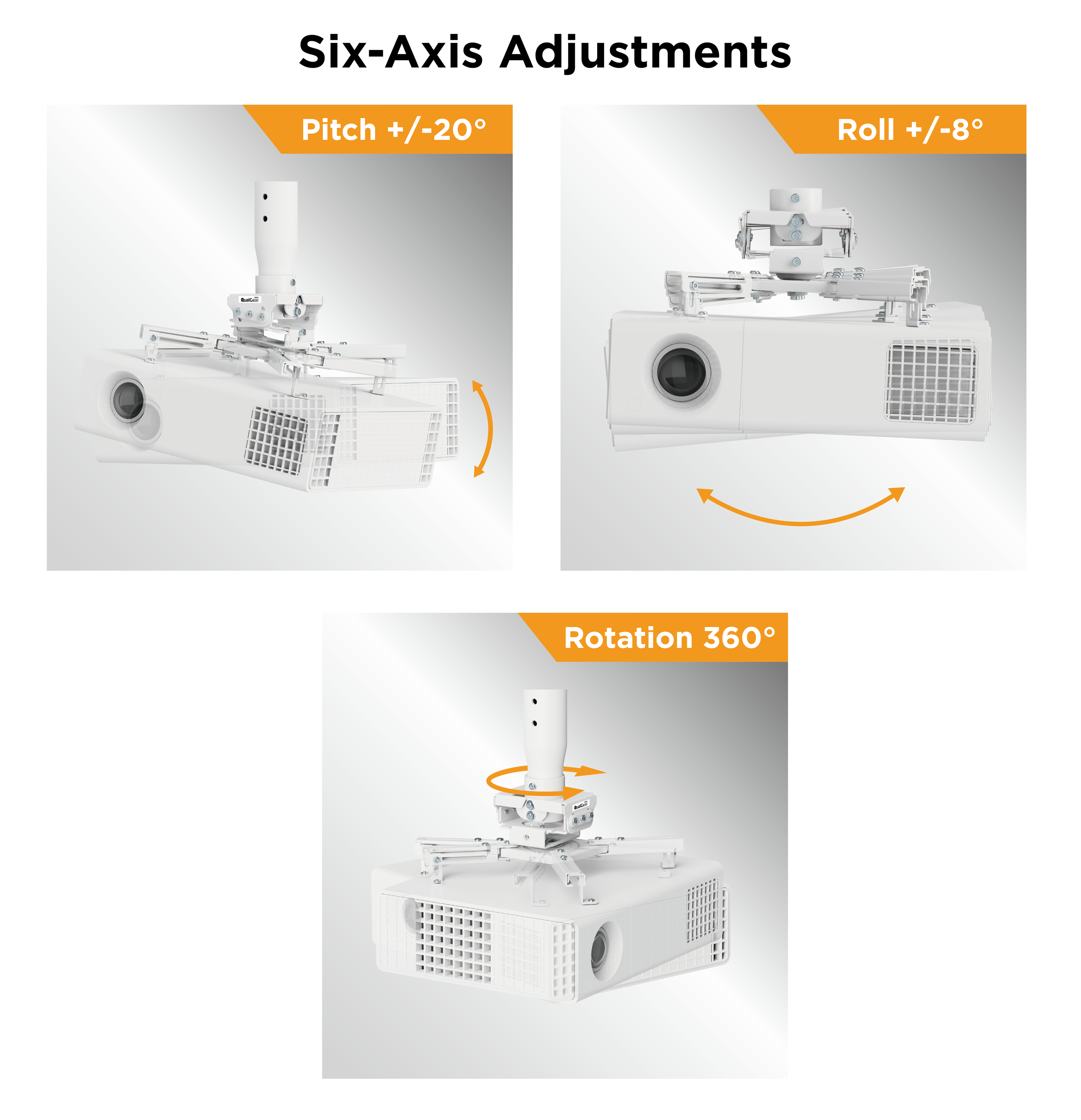

Six Axis Adjustment

QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5 QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5 QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5 QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5

QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5
QualGear® QG-PRO-PM-50-W Pro-AV Projector Mount for 1.5

360 Degree View

Product Specifications

  • Maximum Weight :
    70lb (31.8kg)
  • Rotation (yaw) :
    360°
  • Pitch :
    +/- 20°
  • Roll :
    +/- 8°

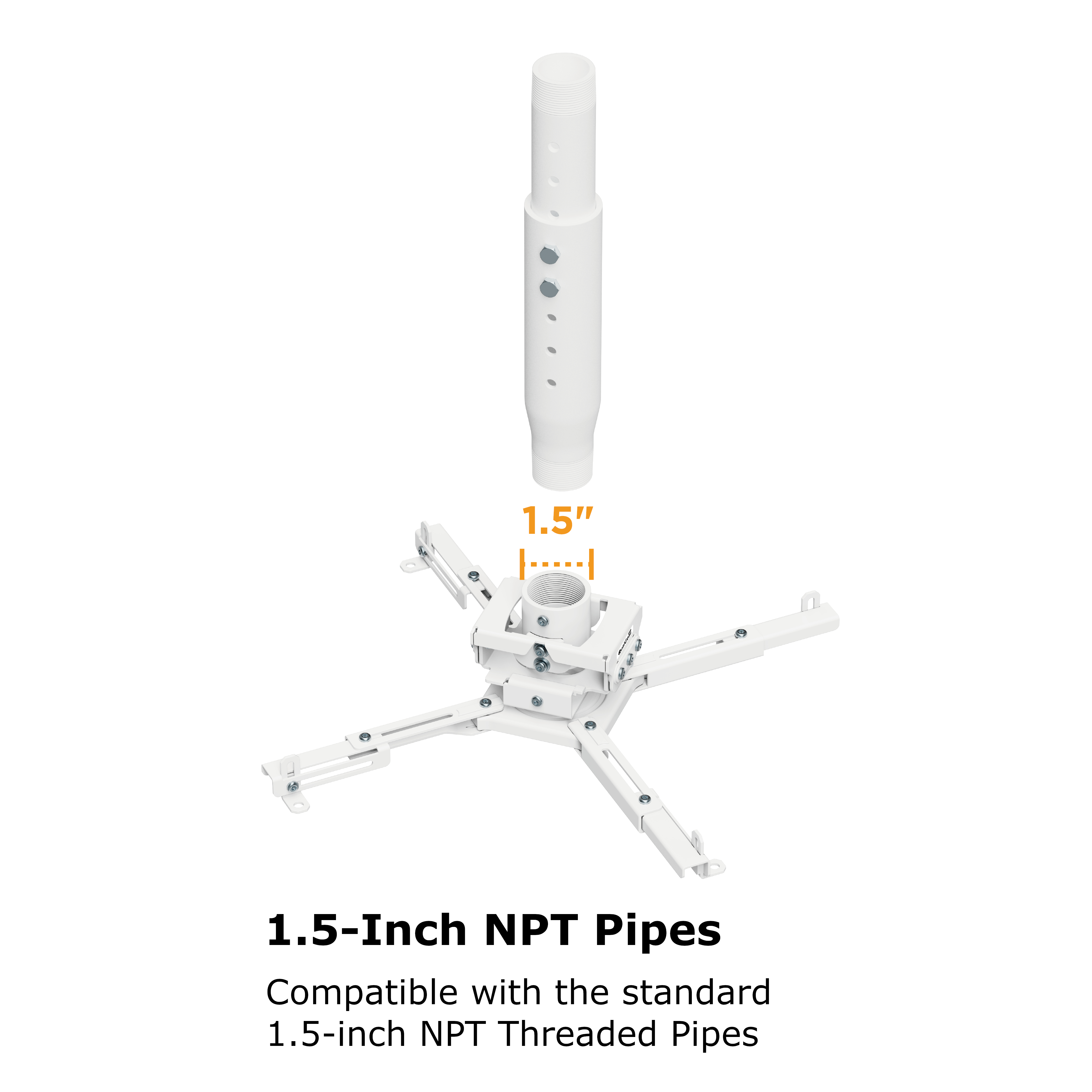

  • 1.5 NPT thread compatible :
    Yes
  • Product Weight :
    2.2lb (1kg)
  • Color :
    White
  • Mounting Profile :
    3.46" (88mm) from ceiling to projector surface
  • Product Dimensions (inches):
    13 X 5 X 3
  • Product Weight (lbs):
    3.5
  • Shipping Dimensions (inches):
    12 X 10 X 6
  • Shipping Weight (lbs):
    3.9
  • Shipping Container:
    Box
  • Carton Dimensions (inches):
    16 X 14 X 10
  • Carton Weight (lbs):
    32.7
  • No. of Units in a Carton (Case Pack Quantity):
    9
  • Volume of Carton (ft3):
    1.2962
  • Volume of Carton (m3):
    0.036704236
  • Cartons per Pallet (per 80 ft3 or Max Weight 1500lbs):
    45
  • Pallet Quantity (Number of Units per Pallet):
    405
  • Customs Description (USA) :
    Projector Mount Brackets
  • Customs HTS Code (USA) :
    8302.50.0000

Similar Products

Installation Manual

Note: We constantly revise installation manuals based on customer feedback. So please be advised that actual product manual that comes with your product purchase may vary from the product manual on this website. We request you to use the manual that comes with your product purchase for installation purposes. If you encounter any issues during the installation, please contact our customer support. support@qualgear.com
